Product SKU: BR21-351-HSx2-UG-DC-WF
This is a special product designed for customized use.
To get a quote for this product please call us or fill this form

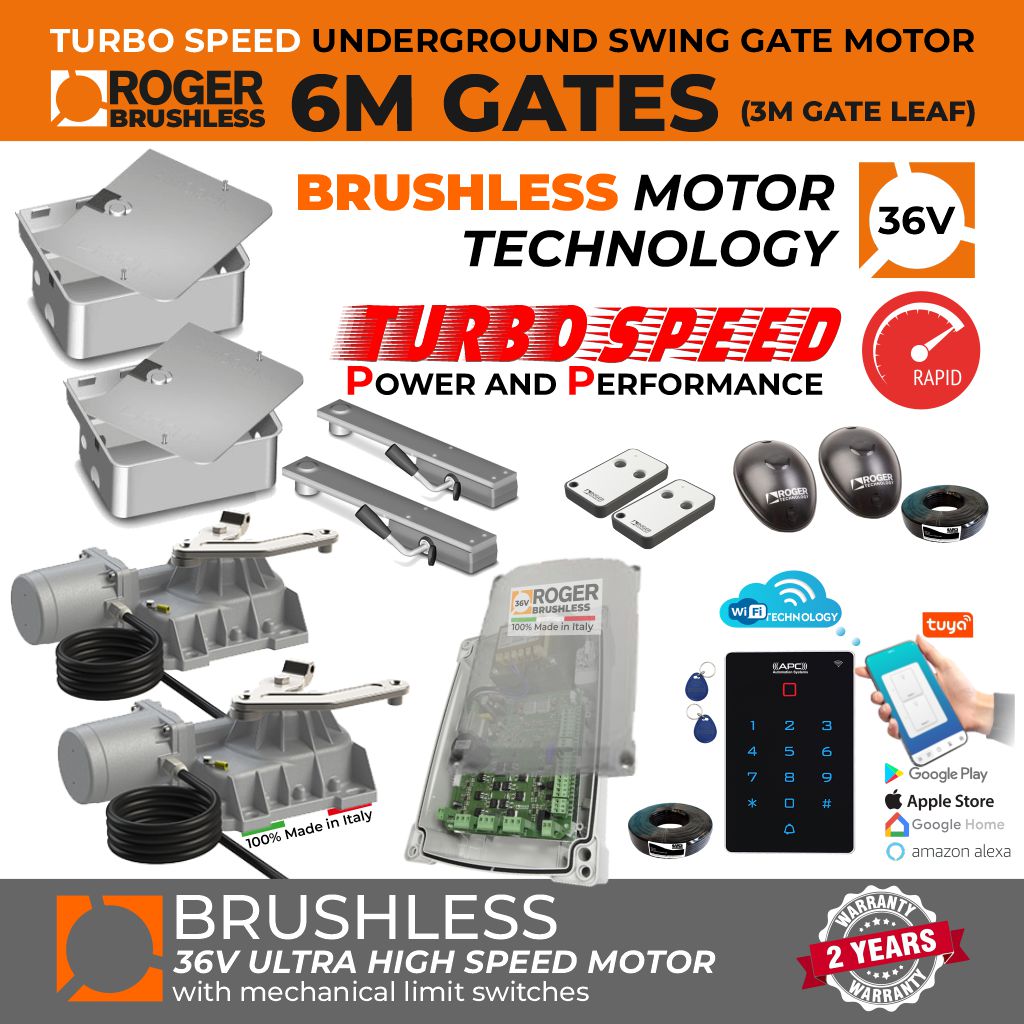

Electromechanical underground motor, HIGH-SPEED BRUSHLESS, low voltage, super intensive use, with native encoder onboard, ideal for swing gates with leaf up to 3m. Standard version with 2m cable.
Electromechanical actuator TURBO-SPEED BRUSHLESS, 36V low voltage, super intensive use, with native encoder onboard, swing gate opener with mechanical stopper in opening and closing.
| Power line supply: | 230V AC - 50Hz |
| Motor power supply: | 36V |
| Power rating: | 200W |
| Frequency of use: | Intensive use |
| Torque: | 50 - 200 N m |
| Operating temperature: | -20+55°C |
| Protection level: | IP67 |
| Manoeuvre speed: | 2 Rpm |
| Opening time: | 10-25 s |
| Limit switch: | Mechanical stoppers |
| Recommended digital controllers: | 230V - EDGE1/BOX |
| Encoder: | Digital native encoder SENSORLESS 48 PPR |
| Maximum opening: | 105° (optional 125° with LT300) |
| Power supply cable length: | 2m |
| Bearing on the main shaft: | Standard |
| Operating cycles per day (opening/closing - 24 hours, no stop): | 1300 |
The Roger Technology 36V EDGE1/BOX Swing Gate Digital Control Board for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made |
The 36 V EDGE1 control unit controls 1 or 2 ROGER brushless motors in the sensorless mode for applications on large-sized or heavy gate wings.
The control board is protected with a cover to avoid insect damage (the most significant cause of control board failure in Australia).
| Power line supply: | 230V AC - 50 Hz |
| Operating temperature: | -10+55 C° |
| Protection level: | IP54 |
| N. motors activated: | 2 Brushless Motor |
| Max power per motor: | 250W |
| Max courtesy light charge: | 100W 230V AC - 40W 24V AC/DC |
| Max power gate open light: | 3W (24V DC) |
| Max voltage accessories output: | 20W (24V DC) |
| Electrical-Lock max power: | 15W (12V DC) |
| Flashlight voltage: | 24V DC |
| Max flashing light charge: | 25W |
| Battery: | Optional |
| Maximum dimension product in mm (L x W x H): | 330 x 230 x 115 |
Fix code transmitter 433,92 Mhz. 2 channels, with radio for copy.
Technical features
| Standard power: | 3V DC |
| Absorption: | 12mA |
| Operating temperature: | -10+55 °C |
| The number of channels: | 2 |
| Codification: | Fix code |
| Modulation: | AM/ASK |
| Carried frequency: | 433.92MHz |
| The number of combinations: | 65536 |
| Radio for a copy: | Yes |
| The maximum distance in the open field: | 150m |
| Battery: | Mod "CR2032" 3V |
| Maximum dimension product in mm (L x W x H): |
38 x 68 x 11 |
Pair of external photocells synchronized 24V AC/DC (max. 4 pairs).
Synchronized Garage/Gate Photocells Safety Sensor [R90 F4ES] | Safety Beam Infrared Technology Gate Sensor Motion Detector Synchronized 24V AC/DC (max. 4 pairs).
| Standard power: |
24V AC - 50Hz - 24V DC |
| Absorption: | TX 18mA - RX 27 mA |
| Operating temperature: | -20+55°C |
| Protection level: | IP55 |
| The maximum distance in an open field: | 10 - 15 m |
| Maximum number of photocells synchronized: | 4 |
| Orientation angle: | - |
| Relay contacts max current: | 0.5A RX |
| Relay contacts max voltage: | 30V |
| Installation Type: | External |
| Maximum dimension product in mm (L x W x H): | 62 x 88 x 27 |
Gate Safety Sensors are essential devices installed on gates to ensure the safety of individuals and objects around the gate. These sensors detect any movement near the gate. Once the sensor detects movement, it signals the gate opener to stop closing or reversing the gate's direction. Overall, installing a gate safety sensor is crucial in ensuring the safety of your property and the people around it.
