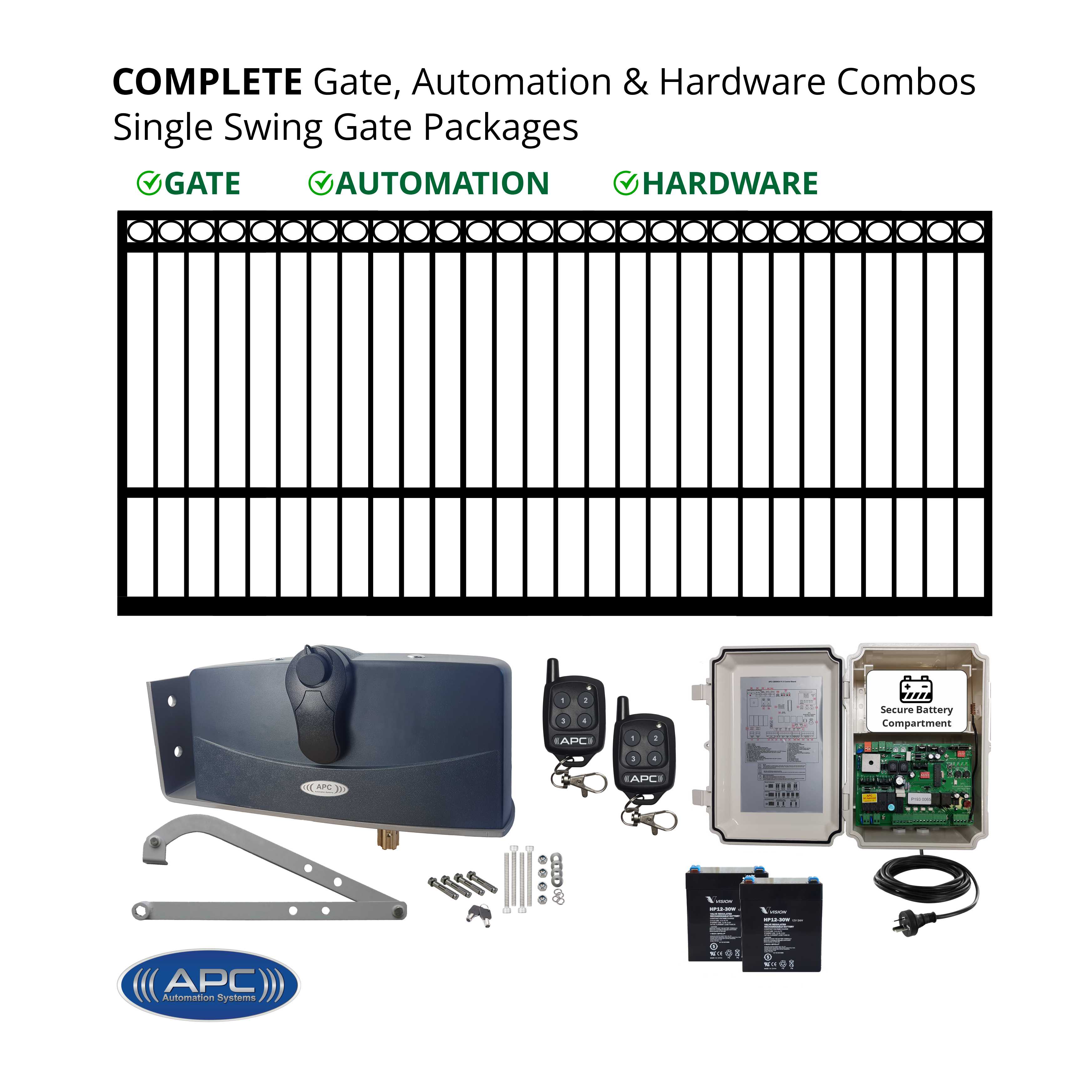

3.5m Ring Top Gate + Extra Heavy Duty Articulated Kit, Gate and Gate Opener Combo

Extra Heavy Duty High-Speed Articulated Arm System

Reliability, Durability & Weatherproof

Designed in Australia the system is engineered and built to withstand the test of time, the Extra Heavy Duty unit is built only with the best and most reliable components giving it the capacity of 4.5m of gate or 300kg of weight. Furthermore it is completely weatherproof and concealed to suit all weather conditions.

All Metal Gear Box (NO PLASTIC OR NYLON)

Six strong steel gears with one copper transfer gear along with six sealed bearings (two per gear stack) making it one of the most robust and smooth gear motors out there.



Limit Switches and Manual Override

Built in double-sided manual override shaft creating a universal motor for left or right side installations. Supplied with two lockout keys for security and an easy to use fixed on lever.

360° Adjustable limit cams to ensure a precise cut off for the open and closed positions and furthermore increase the motors life.

24V Extra Heavy Duty DC Motor

Strong DC motor with thick 15mm Output Shaft centered on a bearing at each end to ensure perfect alignment through all directions of operation.

Adjustable Long Span Powder coated Steel Arms

Over engineered 10mm thick steel arms are powder coated and customisable in length. The Primary and Secondary Arms which can span up to 1100mm towards the centre of the gate or be cut back to suit low clearance installations. Ball bush flexible joints allow for gates to continue to operate whilst gates are out of level and even operate tilting/rising gates up to 20°.

Forward Mount Bracket

Powder Coated Forward Mounting Bracket which can be used for post and pillar installations. 7mm thick and one piece (not welded) this bracket will not bend or break over time. 150mm in width but being a solid steel bracket additional mounting holes can be drilled to suit narrower posts (100mm).

Motor Dimensions

Installation Dimensions

APC-790 Extra Heavy Duty Articulated Swing Gate Opener (Forward Mount Bracket and Optional Side Mount Bracket)

APC-790 Heavy Duty Articulated Gate Opener | 4.5m / 300kg Capacity | Automotion Plus

Upgrade your gate with the APC-790 Articulated Swing Gate Opener. Australian-designed for wide pillars and heavy farm gates. Features all-metal gears, a 24V DC motor, and easy forward-mount installation. Shop now for fast AU delivery.

Key Features, Technical Specifications, Why Choose the APC-790?, Frequently Asked Questions.

The Ultimate Solution for Wide Pillars and Heavy Gates

The APC-790 Articulated Motor Swing Gate Automation System is engineered specifically for Australian conditions, offering a robust automation solution where standard linear actuators fail. Designed with a versatile "Forward Mount (FM)" and "Side Mount(SM)" geometry, this motor is perfect for brick pillars and large posts, allowing the long arm to reach around corners efficiently. Built with a whisper-quiet 24V DC motor and an all-metal gearbox, the APC-790 guarantees reliability without the weakness of plastic components. Whether you are automating a residential driveway or a rural farm gate, this system delivers high-speed operation with precision control.

Key Features

• Australian Designed Toughness: sealed and weatherproofed to withstand blistering heat and heavy storms.

• 100% All-Metal Gearbox: Zero plastic or nylon parts. Features six robust steel gears and a copper transfer gear with sealed bearings for a long operational life.

• Heavy-Duty Capacity: Capable of operating gates up to 4.5 meters in length or weights up to 300kg.

• Flexible Installation: The Forward Mount (FM) or Side Mount (SM) Brackets with Long Arm allow easy installation on brick pillars and wide posts where geometry is tricky.

• Precision Limit Switches: Built-in 360°-adjustable cams let you set exact Open and Close positions, protecting your gate and motor from physical strain.

• Solar Ready: The 24V DC low-voltage architecture makes it perfectly compatible with APC Sun Power solar kits for off-grid reliability.

Data Sheet: Technical Specifications

Product Capability & Benefits Table

Optimised FAQ

Q: Why should I choose an articulated arm (APC-790) over a linear actuator?

A: Articulated arms like the APC-790 Swing Gate Openers are designed for "geometry flexibility." If you have large brick pillars or posts where the hinge is set deep in the centre, a linear arm often hits the corner of the post. The APC-790's "elbow" action allows it to reach around the post, making it the best choice for existing brick pillars.

Q: Is the APC-790 Swing Gate Motor compatible with solar power?

A: Yes, absolutely. The motor operates on 24V DC, making it highly efficient and safe for DIY installation. It pairs seamlessly with the APC Sun Power Solar Kits, allowing you to automate farm gates far from mains power.

Q: Does it come with a warranty?

A: Yes, the APC-790 Swing Gate Motor comes with a 12-month warranty.

Q: Can I install this on a gate that opens outwards (Push-to-Open)?

A: Yes, but you will typically need the Side Mount (SM) bracket upgrade or specific geometry setup. The standard kit is often configured for "Pull-to-Open" (opening inwards towards the property). Check your specific bundle to ensure it includes the correct bracketry for Push-to-Open requirements.

Q: How do I open the gate if the power goes out?

A: The unit features a secure Manual Override System. You simply insert the provided key into the motor body, turn the lever, and the gears disengage, allowing you to push the gate open by hand.

Weatherproof Control Box

The CBSW24 series smart control panel is an easy to connect, simple to setup and feature rich control box vast amount of features as listed below:

Fully weatherproof with a seal
Pre Connected Weatherproof Glands for Wiring Connections
Hinged door with a padlock slot for added security
Pre-Wired and ready to plug into a regular 10A power point



System Features

Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gate
Automatic Feature Learning will learn all features of the remote with a simple pairing process
Ultra High Security Rolling Code remote system allows for the highest form of security for entry to your property
Adjustable Automatic Close time up to 3 minutes


Safety Features

Adjustable Over current adjustments
Safety Sensor connection input
Automatic Courtesy Light Output



Special Features

Party mode: The automatic closing can be cancelled using button 3 on the remote control buttons when expecting a visitor to arrive, reversing a trailer and numerous other uses.
Service Gate Function (12V 250mA max.). Using the second lock output will allow the user to power and control a second electric striker installed on a pedestrian access gate the second lock is powered from the control panel and controlled using button 4 on the remote. APC Wired and wireless Accessories can also be use to control the Lock 2 function.

Accessories Compatibility

Constant 24V DC Accessories Output
Switched 24V DC Output for closing direction (used for safety devices to conserve power, powered on when required)
Open/Stop/Close Inputs for Gate Operation
Loop Detector Connection Input for an Open Only Toggle along with a return to open if closing
Smart Opening & Closing LED indicators: Green LED on during opening and Red LED on during the closing
Automatic Electric & Magnetic Lock Output

Controlling Options

Any or all of the following may be connected to operate the gate

Remote controls
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)

Battery Back Up



Supplied with the automation kit the back up battery system will allow for continued use of the gate system for up to three days of regular use and will automatically recharge upon power restoration. Whilst the system is powered it will continue to float charge to keep the batteries topped up ready for use.
