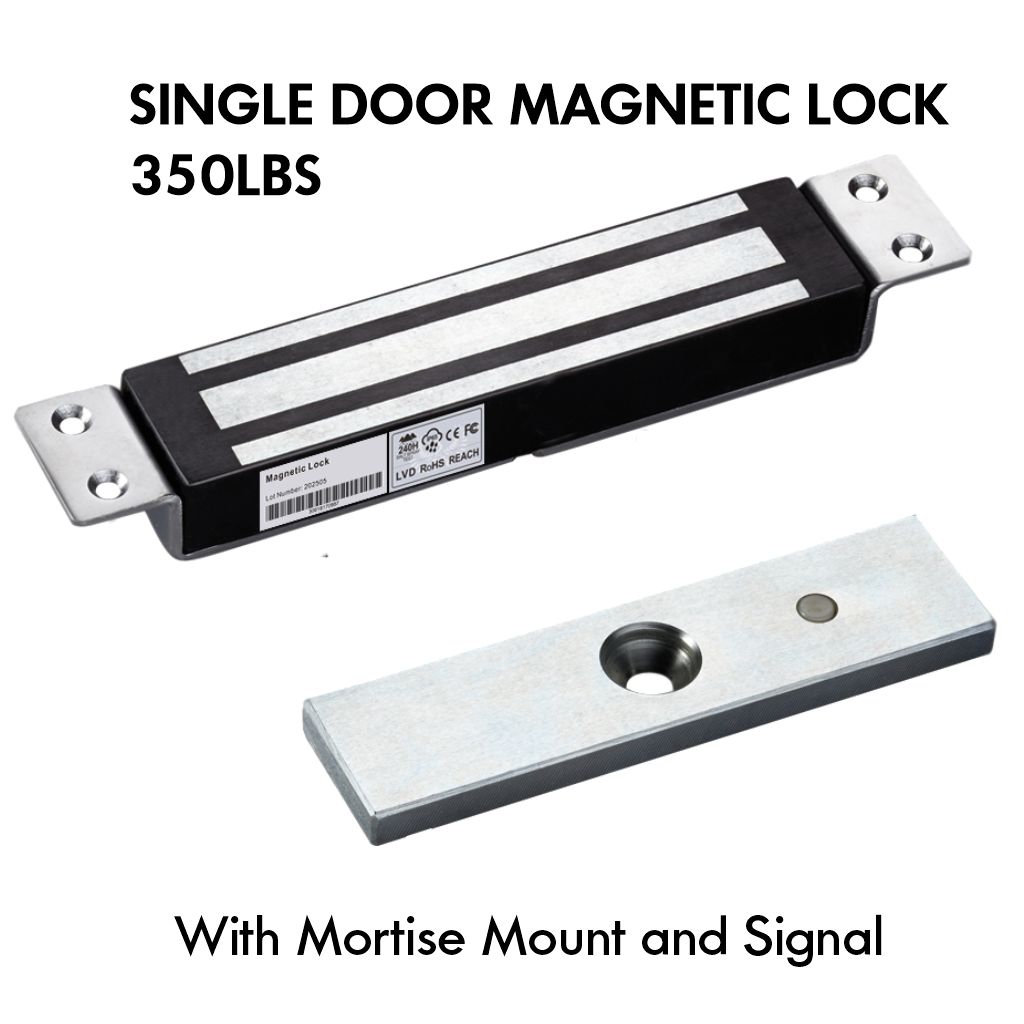

350Lbs Single Door Magnetic Lock with Mortise Mount and Signal Output (Indoor installation only. This product is not weatherproof.)

350Lbs Single Door Magnetic Lock with Mortise Mount and Signal Output – Robust Access Control Solution for Australia

180kg Single Door Magnetic Lock with Mortise Mount & Signal(350Lbs)

Model: 350LBS(180kg), Single Door Magnetic Lock (Indoor Use)

Suitable: Wooden door, Glass door, Metal door

Indoor installation only. This product is not weatherproof.

The 350Lbs single-door mortice magnetic lock is designed for wooden, metal, and glass doors. There is a set of lock-status signal (NO/NC/COM) output contacts that provides real-time feedback to the access control system. These magnetic lock cores are produced using robotic laser welding, providing 2 to 3 times greater impact and torsional resistance than conventional processes. The surface is treated with the internationally leading electroplating process, achieving excellent anti-oxidation, anti-rust, and anti-corrosion performance.

Secure your premises with confidence using this heavy-duty single-door magnetic lock with a holding force of 350 Lbs (180kg), designed for commercial and institutional use in Australia. Featuring built-in signal output (NO/NC) for status feedback, dual-voltage operation (12 V/24 V DC), and robust construction, the 350Lbs Magnetic lock delivers reliable access control for wood, metal or glass doors. Ideal for interior use.

Features & Benefits

• Strong holding force (180 kg / 350 lbs): provides secure retention for many single-door applications in commercial, corporate, and educational settings.

• Signal output for lock/door status: Includes NO/NC/COM outputs to feed into your access control or alarm system for real-time monitoring of door status.

• Dual-voltage compatibility (12 V or 24 V DC selectable): Provides flexibility for integration with Australian access control systems and existing infrastructure.

• Built for durability and corrosion resistance: Features an anti-residual magnetism design, ensuring long life in the Aussie indoor environment.

• Suitable door materials: Works with wooden, metal, and glass doors (with the correct bracket).

• Ideal for Australia’s environments: Operating from -30 °C to +66 °C, and 0-95% humidity means it can cope with many indoor Australian sites.

Technical Specifications
