Product SKU: ML-Dbl-280x2-INT
Price :
$325.00
info

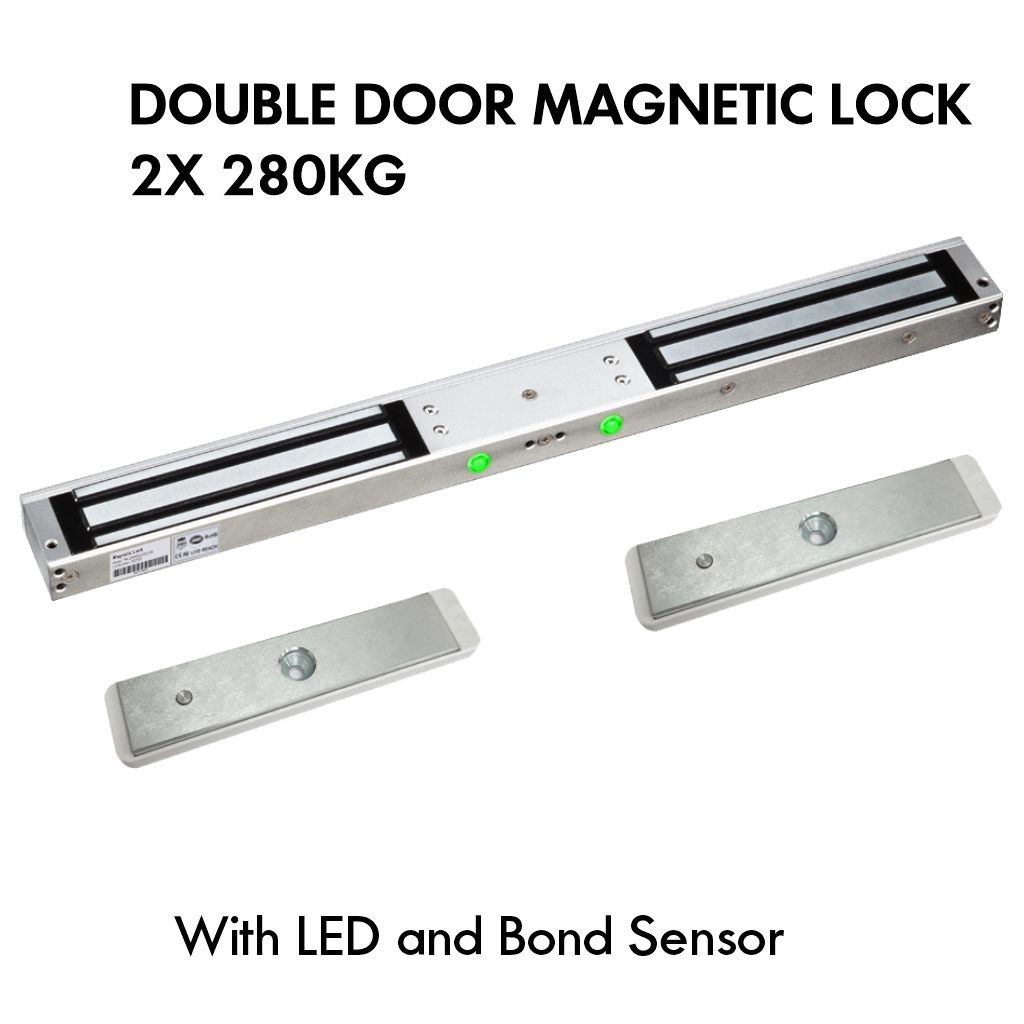

12-24V DC / 2x 280kg Double Doors Magnetic Lock Access Control System - Indoor installation only.
Model: 2x 280kg, Double Doors Magnetic Lock (Indoor Use)
Suitable: Wooden doors, Glass doors, Metal doors
Indoor installation only. This product is not weatherproof.
The 2x 280 kg double-door magnetic lock is designed for wooden, metal, and glass doors. There are both lock-status (NO/NC/COM) and door-status (NO/NC/COM) output contacts. The lock body features ample LED lights. The green light indicates unlocking, and the red light indicates locking. 2x 280kg doors magnetic lock cores are produced using robotic laser welding technology, providing 2 to 3 times greater impact and torsional resistance than conventional production processes. The surface is treated with the internationally leading electroplating process, offering excellent anti-oxidation, anti-rust, and anti-corrosion performance.
-DS-280kg-Double-Door-Magnetic-Lock_1762141761.png)
| Size | 500L x 49W x 28H(mm) |
| Armature Plate Dimension | 180L x 38.8W x 13.2H(mm) |
| Current | 12V/500mA(±10%)x2 ; 24V/250mA(±10%)x2 |
| Lock Signal Output | NO while locking and NC for unlocking (Voltage<30VDC; Current<0.5A) |
| Holding Force | 280kg(600Lbs)±10%x2 direct pull |
| Operating humidity | 0~95% relative humidity |
| Housing treatment | Anodised hard plating |
| Suitable | Wooden door, Glass door, Metal door |
| Certification | CE-EMC CE-LVD RoHS |
Indoor installation only. This product is not weatherproof.
The 2× 280kg double door magnetic lock is a heavy-duty, indoor access control solution providing up to 280 kg holding force per magnet. Designed for secure double doors, this double door maglock is ideal for offices, commercial entrances and secure rooms. The unit includes a built-in bond sensor for lock status monitoring and is compatible with most access control panels and exit devices.
| Model | ML-DBL-280X2-INT |
| Holding force | 280 kg per magnet (2×) |
| Voltage | 12 / 24 V DC (field selectable) |
| Mounting | Surface mount — L and Z brackets available; glass U-bracket optional |
| Dimensions (mm) | 500 (L) × 48 (H) × 25 (D) |
| Environmental | Indoor installation only — not weatherproof |
This double door maglock is designed to integrate with most access control systems, electric strike panels, and exit devices. Use appropriate mounting brackets for glass or narrow stile doors.
No — this model is for indoor installations only and is not weatherproof.
The bond (lock) sensor reports the locked/unlocked state to your access control or alarm panel so you can monitor door status remotely.
Yes — with the appropriate glass U-bracket (sold separately). Contact our support team for the correct bracket for your glass door thickness and frame type.
Holding force (kg) indicates the strength of the magnetic attraction under ideal conditions. 280kg is suitable for most commercial double doors; higher ratings may be used where greater resistance to forced entry is required. Always pair locks with suitable frames and hardware to achieve rated performance.
Need help choosing? Call our experts at 1800 694 283 or email support@automotionplus.com.au — we can confirm compatibility, supply brackets, or recommend alternatives.
