Product SKU: GTR25-apc-able-LNM3000-DC

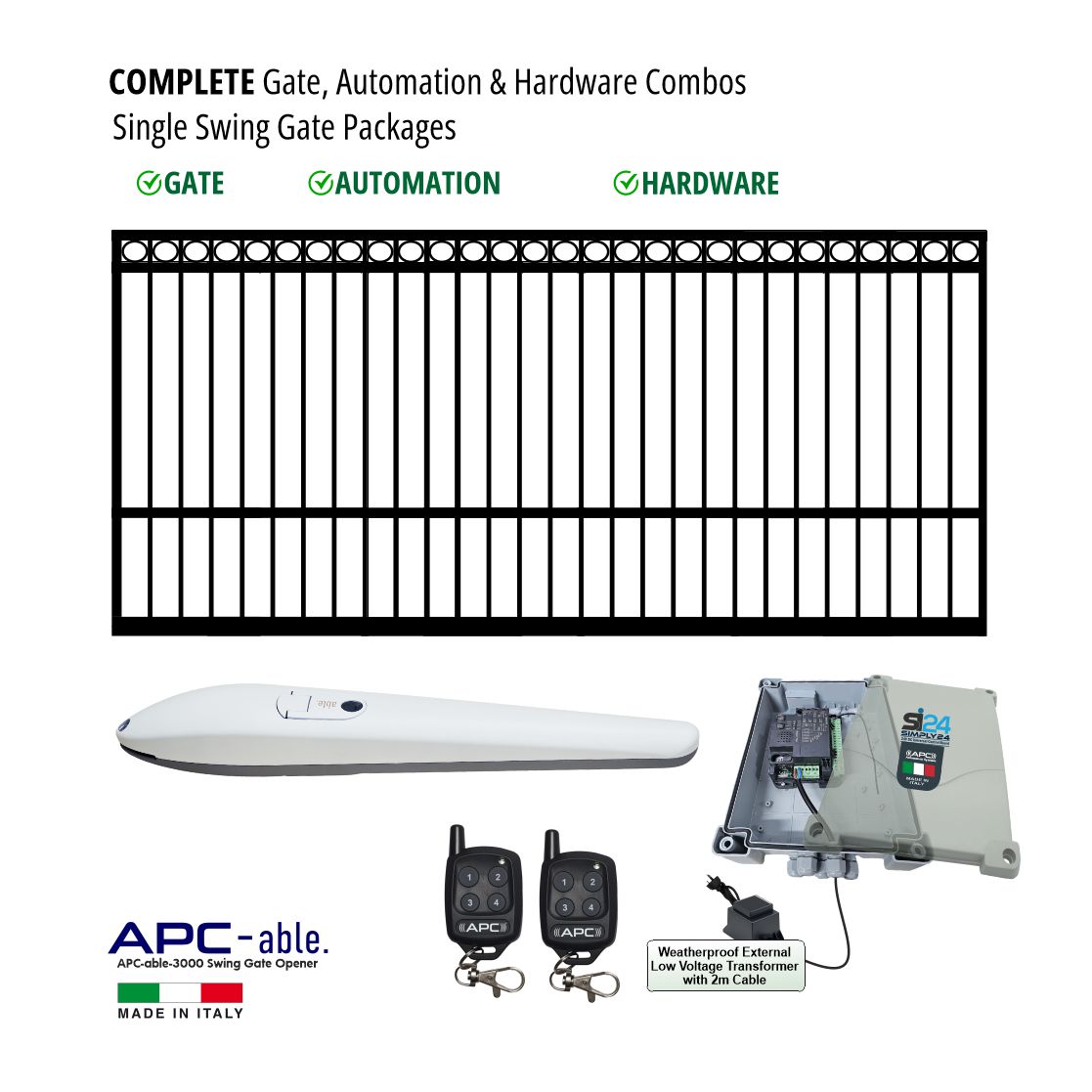

2.5m Ring Top Gate & Automation Combos with APC Able 3000 Italian Made Heavy Duty Gate Opener System With Adjustable Built-In Stop. Complete Single Swing Electric Gate Packages

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

2.5m Ring Top Gate & Automation Combos with APC Able 3000 Italian Made Heavy Duty Gate Opener System With Adjustable Built-In Stop. Complete Single Swing Electric Gate Packages

Product SKU: GTR25-apc-able-LNM3000-DC

  •  In Stock

  • Freight DeliveryFreight Delivery
    This is a large item and will require a freight quote. Please add all items to your cart and continue through the checkout process for a complete freight delivery cost.
Get More Info..

Kit Price:

$1,977.00

  • Or in 4 payment of $494.25 with afterpay info

  • Classic Design Ring Top Gate, Satin Black Powdercoating, Robust 80x40 - 40x40 Steel + 19mm Pickets

  • Kit Includes

    01 2.5m Ring Top Gate (QTY: 1)
    02 APC Able 3000 Heavy Duty Linear Actuator, Italian Made Swing Gate Opener Motor with Adjustable Built-In Stop for Automatic Gate Opener 24V System. Max 3m or 600kg per gate. (QTY: 1)
    03 3m 2 Core Non-Shielded Cable (QTY: 1)
    04 Pair of Mechanical Limit Stop for Each APC-able Linear Actuators Suitable for Opening and Closing Position (QTY: 1)
    05 APC Simply 24V Universal Control Box (QTY: 1)
    06 Standard AC/DC Powered with 2m Cable for Simply24 Control Box (Upgrade Option Below for 24V LV External Transformer with 20m Cable) (QTY: 1)
    07 APC Four Button Keyring Remote (QTY: 2)
    08 Two FREE Sunvisor Remote Controls (Promotion) with every Electric Gate Automation Kit order. (QTY: 2)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Classic Ring Design Gate with 19mm Pickets and an additional Horizontal Support Rail




Key Features
  • Classic Ring Design
  • 1500mm Height
  • 19mm Pickets
  • Robust Satin Black Powdercoating
  • 40x40mm Steel for Top & Sides
  • 40x40mm Vertical & Horizontal Support Rails
  • 80x40mm Bottom Rail
  • Completely Welded Throughout

Suitability
  • Sliding Gate Applications
  • Swing Gate Applications
  • Residential Use
  • Commercial Use

Italian Made Swing Gate Opener | Linear Actuator for Automatic Driveway Gates

Packing a punch, the "APC Able 3000" system can deliver 2000N of thrust to operate gates up to 600kg or 3m in length for each gate. With a built-in adjustable mechanical stop for opening (an optional add-on mechanical closing stop), the system offers versatile stopping positions.

24V Automatic Swing Gate Motor. "APC Able 3000" Electromechanical actuator for swing gates with each leaf up to 3m in length (for each gate).





Italian Made Swing Gate Actuator Overview

Characteristics

  • Equipped with an opening mechanical limit stop
  • Mechanical closing stop accessory
  • Single version for both right and left leaves
  • Adjustable brackets for quick engine installation
  • Aluminum frame
  • Unlocking the handle with the protected lock
  • Plug-in connector for electrical connections



Italian Made Swing Gate Automation Installation Geometry



Italian Made Swing Gate Opener System Specifications

Thrust 2000N

Motor Voltage

24v DC

Manual override

Via override key supplied

Working temperature

-20° - +55°

Gates size

3m max for each gate

Gate weight

600kg max for each gate

Italian-Made Swing Gate Motor System Capacity

Maximum Gates Leaf Length: 3 M*

Maximum Gates Leaf Weight: 600 Kg*

(*for each gate)







24V Universal Control Box | APC SIMPLY24

The APC Proteous Series, Simply24 Control Board is a universal control unit for all 24-volt gate openers. This control board will radically simplify the instiller’s job and provide high-performance levels in safety, time and speed. A single programming method can activate the automatic device and learns the setup cycle. Set-up and operating mode adjustments can be done using dimmers, dip switches and diagnostic LEDs. The control board is protected with a cover to avoid the damage from insects (the biggest cause of control board failure in Australia).



System Features

  • Ultra-High-Security Rolling Code remote system with integrated radio receiver, which allows for the highest form of security for entry to your property.
  • Simple ONE PRESS full feature remote Ultra High-Security Rolling Code learning system (and service-free remote learning options). The system can store up to 170 remotes.
  • 80% Duty Cycle (Can operate for up to 48 Minutes every 60 minutes)
  • Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gate.
  • Customizable auxiliary output for the electric or magnetic lock.
  • Configurable travel distance for pedestrian operation, which can be operated by remote, keypad or push button.
  • Compatible with Induction Loop and Vehicle Motion Detector.
  • Power trimmer to regulate motor power.
  • Diagnostic LEDs and Dipswitches for setting operating modes, motor type, sensors and safety light.
  • Adjustable auto closing setting from 0 to 180 seconds with the trimmer.
  • Always comes with a weatherproof external transformer for easy install and low voltage connections with the gate opener kits.



Special Features

  • Energy Saving Mode.
  • Optional battery backup system
  • Flexibility in programming each channel of the remote
  • Soft Start/Soft Stop (Ramping feature) with adjustable cut-in points
  • Customizable auxiliary output for electrical or magnetic lock
  • Induction Loop Compatible for auto opening or as a safety device.
  • Supports programmable timers.



Safety Features

  • Adjustable Over current adjustments
  • Safety Sensor connection input configurable for opening and/or closing
  • Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times



Control Board Overview



Accessories Compatibility and Controlling Options

  • Constant DC Accessories Output
  • Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
  • Remote controls
  • Induction Loops
  • Weekly Timers
  • Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
  • Keypads (Wired and Wireless Options Available)
  • Exit/entry sensors
  • Intercom system with dry contact output
  • Automatic switching timer
  • WiFi Control System (App-Based Control)
  • GSM Control Systems (Mobile Call/SMS-based Control)



Gate Automation Remote Control Features

Ready to clip onto your keyring | Gate Opener Remote Control

APC Four Button Keyring Remote Control for Gate Automation System

APC Four Button Keyring Remote Control for Gate Automation System

  • Featuring High-Security rolling codes transmitting a unique code chosen at random
  • Slim Design
  • Keyring Clip-on System
  • Completely Backwards Compatible with all legacy APC Control Boards



External Transformer (Extendable up to 80 metres cable distance)

24V External weatherproof designed to be used in a low voltage cabling application of up to 80 meters, supplied with a pre-connected 2-meter cable.





Specifications



Mains power supply: 230 Vac +/- 10%, 50-60 Hz

Motor power supply: 24 V DC 280 W and 10 A peak motor

Warning light power supply: 24V max 15W

Gate pilot lamp power supply: 24 Vdc max 10 W

Accessories power supply (photocells &): 24 Vdc max 10 W

Radio receiver frequency: 433.920 MHz

Storable remote controls: 170

Radio antenna input: Rg58

Operating temperature: -20°C / +50°C



Optional Battery Back Up

An optional battery backup system is available for the automation kit. The backup battery system will allow for continued use of the gate system and automatically recharge upon power restoration. While powered, the system will continue to float charge to keep the batteries topped up and ready for use. The system is supplied with the charger module along with the 1.3aH battery pack and is installed within the empty compartment of the SIMPLY24 (24V Universal Control Box) system.

Compartment with Battery Pack and Charger Installed



Your Customised Kit Includes:

No Changes.
        • Kit Quantity:
          • 1

        • Your (Kit and Add-On) Price:

          $1,977.00
