Product SKU: APC-ABLE-LNS2000-LV-BK

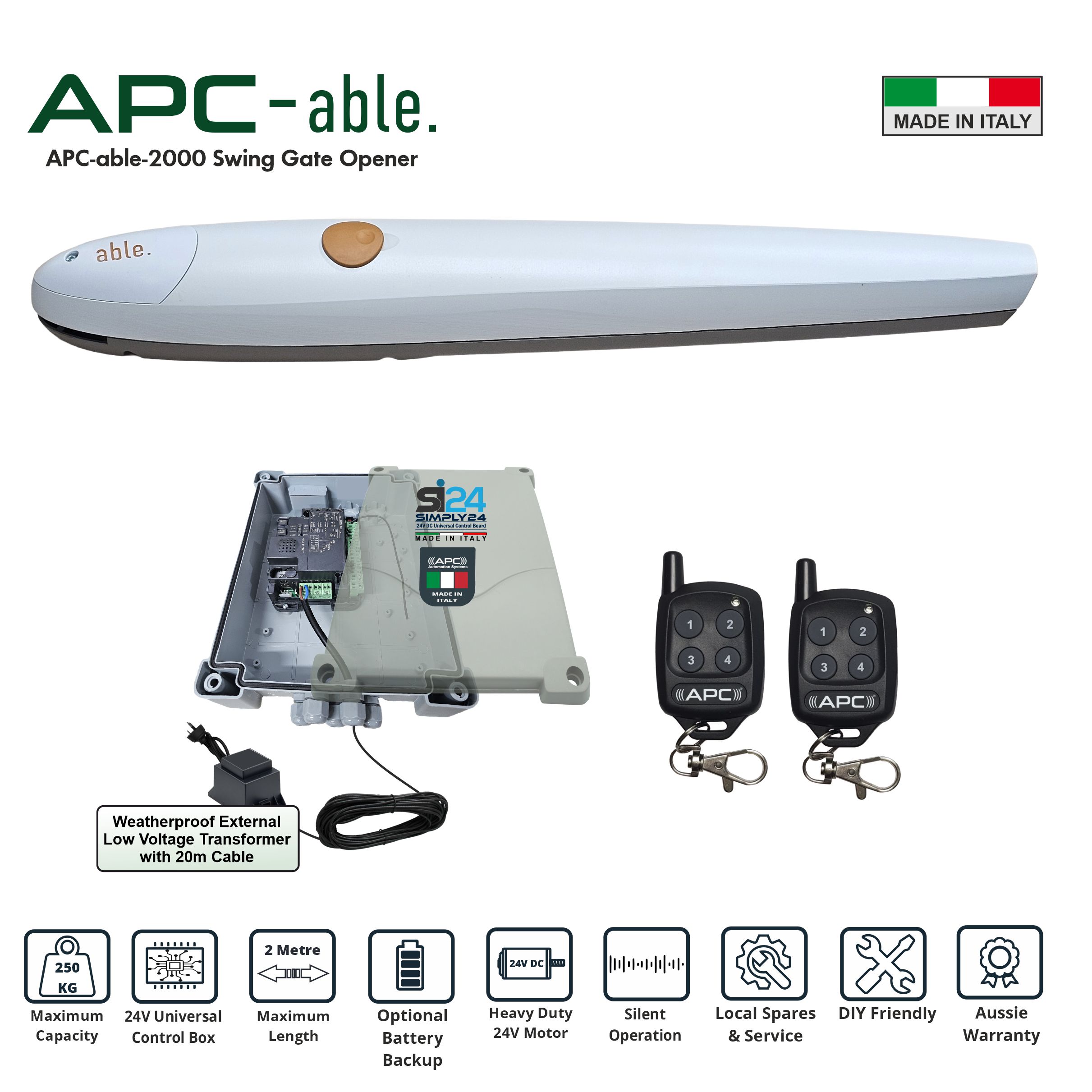

Automatic Electric Gate Opener Kit with Italian-Made APC-able-2000 Swing Gate Motor, Italian-Made Simply 24 Universal Control Box, 24V External Transformer and 20m Low Voltage Cable. 24V Low Voltage Swing Gate Automation System with Remote Controls.

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

  • Extra 10% Off

    coupon EASTER24

Automatic Electric Gate Opener Kit with Italian-Made APC-able-2000 Swing Gate Motor, Italian-Made Simply 24 Universal Control Box, 24V External Transformer and 20m Low Voltage Cable. 24V Low Voltage Swing Gate Automation System with Remote Controls.

Product SKU: APC-ABLE-LNS2000-LV-BK

  •  In Stock

Get More Info..

Kit Price:

$1,045.00 $1,250.00 APC Automotion Plus Sale

  • Or in 4 payment of $261.25 with afterpay info

  • Italian Made Single Swing Gate Opener, Electric Automatic Motorized Gate System, Driveway Gate Opener for Swing Gates

  • Kit Includes

    01 APC able-2000 Linear Actuator with Built-in Adjustable Stop. Italian-Made Swing Gate Opener Motor (QTY: 1)
    02 One Mechanical Limit Stop for Each APC-able Linear Actuators Suitable for Opening or Closing Position (QTY: 1)
    03 3m 2 Core Non-Shielded Cable (QTY: 1)
    04 APC Simply 24V Universal Control Box (QTY: 1)
    05 Weatherproof External 24V Transformer with 20m Low Voltage Cable | Suitable for outdoor use. (QTY: 1)
    06 APC Four Button Keyring Remote (QTY: 2)
    07 Two FREE Sunvisor Remote Controls (Promotion) with every Electric Gate Automation Kit order. (QTY: 2)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Italian Made Swing Gate Opener | Linear Actuator for Automatic Driveway Gates

Packing a punch, the "APC Able 2000" system can deliver 1500N of thrust to operate gates up to 250kg or 2m in length for each gate. With a built-in adjustable mechanical stop for opening (an optional add-on mechanical closing stop), the system offers versatile stopping positions.

24V Automatic Swing Gate Motor. "APC Able 2000" Electromechanical actuator for swing gates with each leaf up to 2m in length (for each gate).





Italian Made Swing Gate Actuator Overview

Characteristics

  • Equipped with an opening mechanical limit stop
  • Mechanical closing stop accessory
  • Single version for both right and left leaves
  • Adjustable brackets for quick engine installation
  • Aluminum frame
  • Unlocking the handle with the protected lock
  • Plug-in connector for electrical connections



Italian Made Swing Gate Automation Installation Geometry



Italian Made Swing Gate Opener System Specifications

Thrust 1500N

Motor Voltage

24v DC

Manual override

Via override key supplied

Working temperature

-20° - +55°

Duty Cycle

50%

Gates size

2m max for each gate

Gate weight

250kg max for each gate

Italian-Made Swing Gate Motor System Capacity

Maximum Gates Leaf Length: 2 M*

Maximum Gates Leaf Weight: 250 Kg*

(*for each gate)





24V Universal Control Box | APC SIMPLY24



The APC Proteous Series, Simply24 Control Board is a universal control unit for all 24-volt gate openers. This control board will radically simplify the instiller’s job and provide high-performance levels in safety, time and speed. A single programming method can activate the automatic device and learns the setup cycle. Set-up and operating mode adjustments can be done using dimmers, dip switches and diagnostic LEDs. The control board is protected with a cover to avoid the damage from insects (the biggest cause of control board failure in Australia).



System Features

  • Ultra-High-Security Rolling Code remote system with integrated radio receiver, which allows for the highest form of security for entry to your property.
  • Simple ONE PRESS full feature remote Ultra High-Security Rolling Code learning system (and service-free remote learning options). The system can store up to 170 remotes.
  • 80% Duty Cycle (Can operate for up to 48 Minutes every 60 minutes)
  • Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gate.
  • Customizable auxiliary output for the electric or magnetic lock.
  • Configurable travel distance for pedestrian operation, which can be operated by remote, keypad or push button.
  • Compatible with Induction Loop and Vehicle Motion Detector.
  • Power trimmer to regulate motor power.
  • Diagnostic LEDs and Dipswitches for setting operating modes, motor type, sensors and safety light.
  • Adjustable auto closing setting from 0 to 180 seconds with the trimmer.
  • Always comes with a weatherproof external transformer for easy install and low voltage connections with the gate opener kits.



Special Features

  • Energy Saving Mode.
  • Optional battery backup system
  • Flexibility in programming each channel of the remote
  • Soft Start/Soft Stop (Ramping feature) with adjustable cut-in points
  • Customizable auxiliary output for electrical or magnetic lock
  • Induction Loop Compatible for auto opening or as a safety device.
  • Supports programmable timers.



Safety Features

  • Adjustable Over current adjustments
  • Safety Sensor connection input configurable for opening and/or closing
  • Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times



Control Board Overview



Gate Automation Remote Control Features

Ready to clip onto your keyring | Gate Opener Remote Control

APC Four Button Keyring Remote Control for Gate Automation System

APC Four Button Keyring Remote Control for Gate Automation System

  • Featuring High-Security rolling codes transmitting a unique code chosen at random
  • Slim Design
  • Keyring Clip-on System
  • Completely Backwards Compatible with all legacy APC Control Boards



External Transformer (Extendable up to 80 metres cable distance)

24V External weatherproof designed to be used in a low voltage cabling application of up to 80 meters, supplied with a pre-connected 20-meter cable this is a perfect solution when running mains power to the gate is not a viable option due to costs, difficulty or just simply to DIY.





Specifications

Mains power supply: 230 Vac +/- 10%, 50-60 Hz

Motor power supply: 24 V DC 280 W and 10 A peak motor

Warning light power supply: 24V max 15W

Gate pilot lamp power supply: 24 Vdc max 10 W

Accessories power supply (photocells &): 24 Vdc max 10 W

Radio receiver frequency: 433.920 MHz

Storable remote controls: 170

Radio antenna input: Rg58

Operating temperature: -20°C / +50°C
