Product SKU: APC-ABLE-L2200-AC-TK
Free Shipping
Kit Price:
$2,314.00
The APC-Able 2200 EXTRA HEAVY DUTY system has a rich feature set of full programmability using the onboard intuitive LCD interface. Suitable for novice users with simple setups, and for all commercial sites with their advanced feature systems. This system can perform many functions and features. See the full details below.

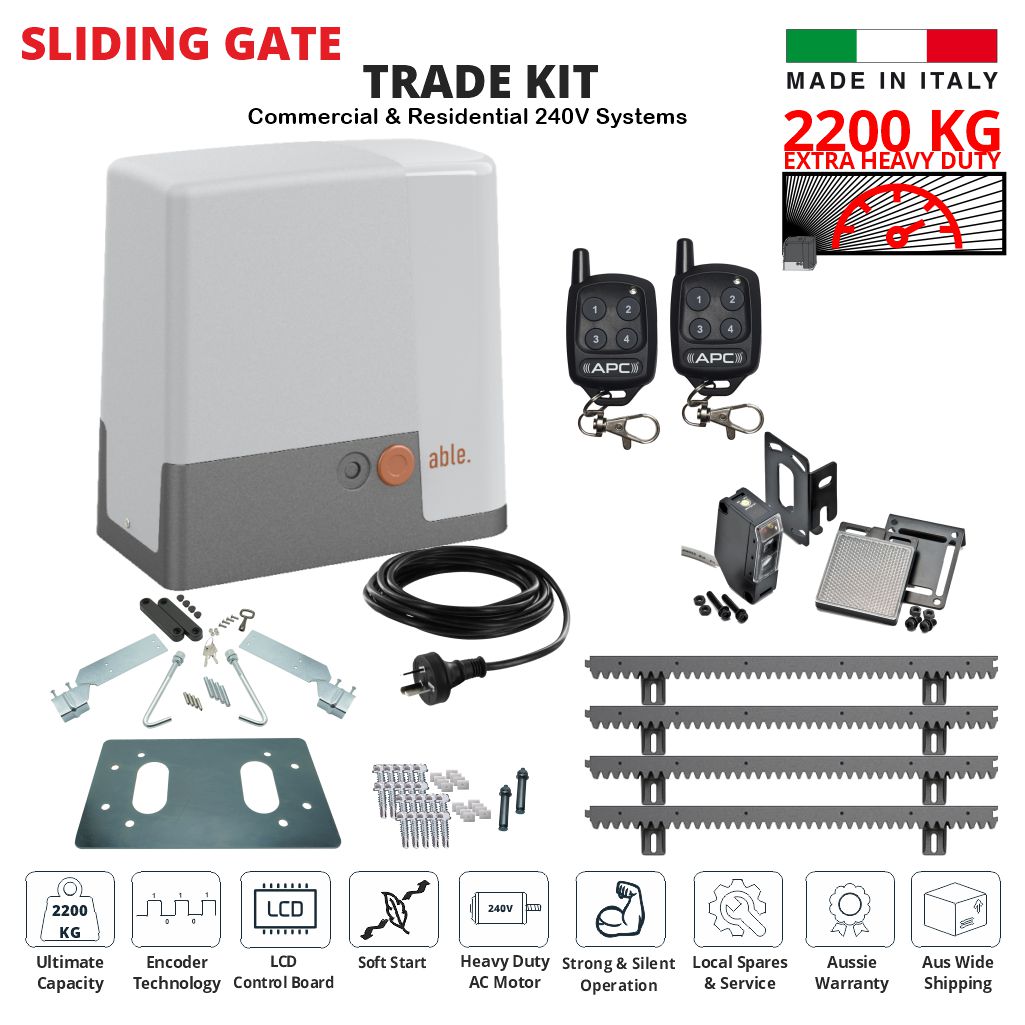

AC Sliding Gate Automation System. Easy Installation, all-in-one Motor and Control Panel for Sliding Gate. Suitable for sliding gates up to 2200kg
Commercial 230V Systems, Electric Gate Automation, Extra Heavy Duty Automatic Sliding Gate Openers.
| FEATURES | UNIT | APC-Able-2200-AC |
| Gate maximum weight | kg | 2200 |
| Power supply vhz |
V / Hz
|
230 / 50
|
| Maximum power | W | 800 |
|
Full load current
|
A | 4 |
|
Gate maximum speed
|
m/s
|
0.16
|
|
Maximum thrust
|
N |
1550
|
|
Duty cycle
|
% | 35 |
| Pinion | - |
M4-Z18
|
|
Working temperature
|
°C
|
-20 ÷ +55
|
| Weight | Kg | 18 |
| Protection degree | IP | 44 |
| Maximum load on 24 Vac Accessories | W | 10 |
2200KG Capacity (2.2 Tonne)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
35% Duty Cycle
Automatic learning of gate travel limits and automatic introduction of soft start and soft stop points
Configurable pedestrian operation travel amount, which can be operated by remote, keypad, button, APP control (module available), and induction loop
Fast and Slow Speeds are adjustable
Simple ONE PRESS full feature remote Ultra High-Security Rolling Code learning system (and service-free remote learning options)
Ultimate Auto close settings are adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates open when configured for use with the automatic close feature
Underside cable entry with grommets
Simple to set up the left and right side magnet system
Strong STEEL Pinion Gear
Solid Alloy Housing with FOUR POINT tilt levelling adjustment system (30mm in any or all directions)
Soft Start (Ramping feature) with adjustable cut-in points
Supports Bi-Parting Sliding Gates using only one set of accessories using the APC SYNCRO module system
Induction Loop Compatible for auto-opening or as a safety device
Supports programmable timers
Adjustable overcurrent adjustments
Built-in Encoder with adjustable sensitivity
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App-Based Control)
GSM Control Systems (Mobile Call/SMS-based Control)
