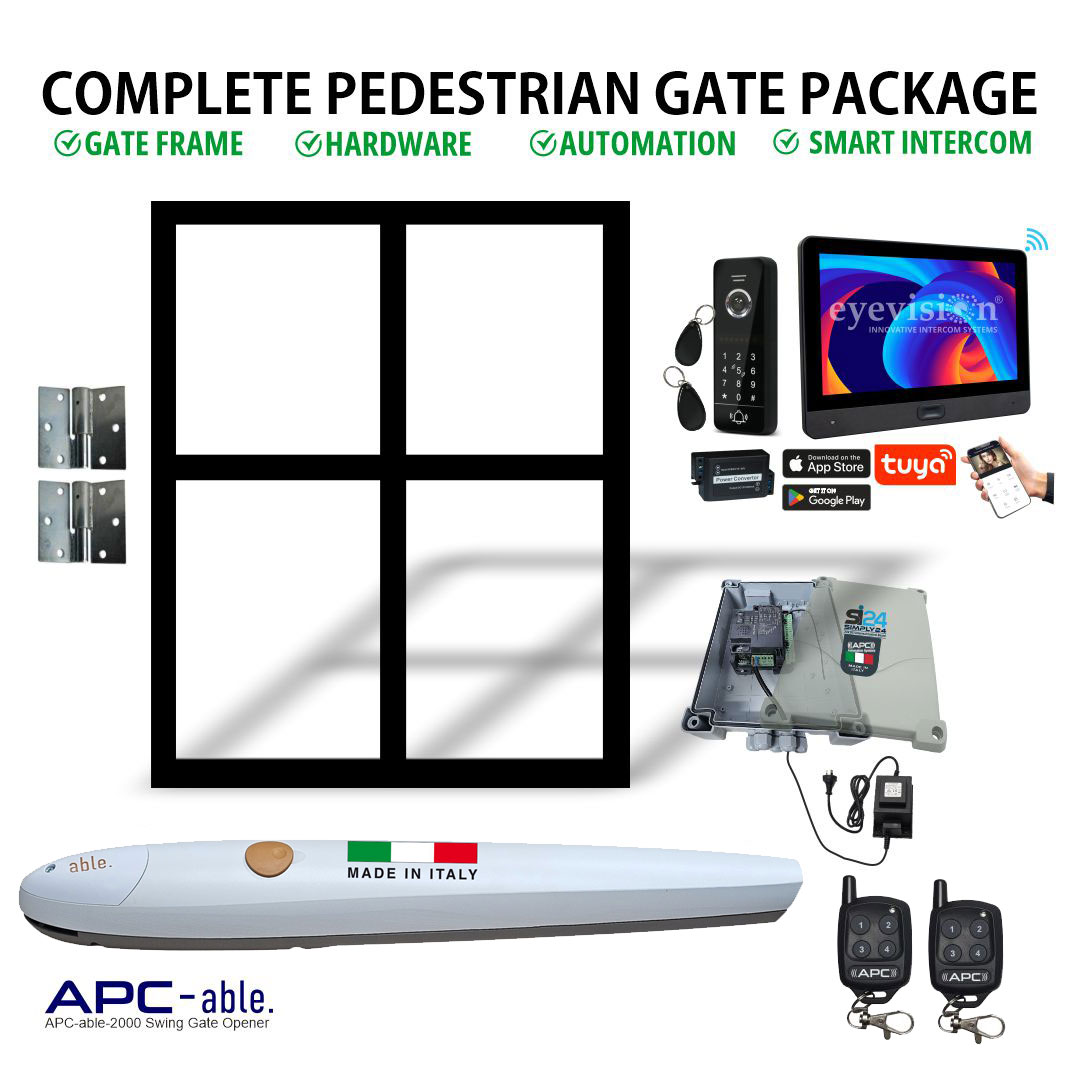

1m Gate Frame, Gate Automation, Hardware & Smartphone Intercom Combo Include Italian Made Able-2000 Heavy Duty Swing Gate System, Remotes, 120° 2MP HD Intercom Camera Keypad (Swipe Tag Reader) Outdoor Station and 8" HD Monitor With Built-In WiFi For Smartphone APP (HD-EV-WF8). Complete Pedestrain Gate Packages

• 1500mm Height
• Robust Satin Black Powdercoating
• 40x40mm Steel for Top & Sides
• 40x40mm Vertical & Horizontal Support Rails
• 80x40mm Bottom Rail
• Completely Welded Throughout

• Sliding Gate Applications
• Swing Gate Applications
• Residential Use
• Commercial Use

Packing a punch, the "APC Able 2000" system can deliver 1500N of thrust to operate gates up to 250kg or 2m in length for each gate. With a built-in adjustable mechanical stop for opening (an optional add-on mechanical closing stop), the system offers versatile stopping positions.

24V Automatic Swing Gate Motor. "APC Able 2000" Electromechanical actuator for swing gates with each leaf up to 2m in length (for each gate).

Characteristics

• Equipped with an opening mechanical limit stop
• Mechanical closing stop accessory
• Single version for both right and left leaves
• Adjustable brackets for quick engine installation
• Aluminum frame
• Unlocking the handle with the protected lock
• Plug-in connector for electrical connections

Italian Made Swing Gate Opener System Specifications

Italian-Made Swing Gate Motor System Capacity

Maximum Gates Leaf Length: 2 M*

Maximum Gates Leaf Weight: 250 Kg*

(*for each gate)

The APC Proteous Series, Simply24 Control Board is a universal control unit for all 24-volt gate openers. This control board will radically simplify the instiller’s job and provide high-performance levels in safety, time and speed. A single programming method can activate the automatic device and learns the setup cycle. Set-up and operating mode adjustments can be done using dimmers, dip switches and diagnostic LEDs. The control board is protected with a cover to avoid the damage from insects (the biggest cause of control board failure in Australia).

System Features

• Ultra-High-Security Rolling Code remote system with integrated radio receiver, which allows for the highest form of security for entry to your property.
• Simple ONE PRESS full feature remote Ultra High-Security Rolling Code learning system (and service-free remote learning options). The system can store up to 170 remotes.
• 80% Duty Cycle (Can operate for up to 48 Minutes every 60 minutes)
• Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gate.
• Customizable auxiliary output for the electric or magnetic lock.
• Configurable travel distance for pedestrian operation, which can be operated by remote, keypad or push button.
• Compatible with Induction Loop and Vehicle Motion Detector.
• Power trimmer to regulate motor power.
• Diagnostic LEDs and Dipswitches for setting operating modes, motor type, sensors and safety light.
• Adjustable auto closing setting from 0 to 180 seconds with the trimmer.
• Always comes with a weatherproof external transformer for easy install and low voltage connections with the gate opener kits.

The Eyevision® Intelli HD Series four-wire intercom is a feature-rich state-of-the-art intercom system boasting every feature requested from an intercom system (and much more...).

Any visitor calls can be received by the APP on your smartphone or tablet along with the monitor simultaneously with a large feature set from the APP and the indoor monitor. No extra modules are required to connect to the internet as the indoor monitor has built-in Wi-Fi and is able to connect directly to your home's 2.4GHZ Wi-Fi connection.

Two outdoor stations can be connected for the front gate/front door/back door (with motion detection & recording) along with up to SIX monitors within the home, allowing for the visitor's call to be answered from any station and transferred to a different station if required.

The Intelli series can have a common release connected directly to the monitor, allowing for simultaneous front gate - front door release, making it easier to let a guest in without switching between menus or running to the door.

• Supports up to TWO Outdoor Stations, each with its own electric striker/gate release feature
• Supports up to SIX indoor Monitors
• Common independent electric striker/automatic gate release feature
• Supports Motion Detection for Outdoor Stations (uses its own built-in sensor)

• Built-in WiFi To Connect To Your Home Internet Connection
• Tempered Glass With Touch Sensitive Buttons
• Simple Easy To Use User Interface
• Free To Use Tuya Smart App For All Modern Mobile Phones And Tablets
• 11 Languages To Choose From
• Ultra Slim 18mm Depth
• 8" TFT LCD Color Touchscreen Monitor 1024x600 HD Resolution
• Built-in Mute Switch
• Intercom Calls Directly To Smartphone(APP) And Monitor Simultaneously
• Intercom Internal Call And Call Transfer
• Calendar Screen (Time And Date) Option Before Entering The Main Menu
• Set Scheduled Ring Volumes For Morning, Afternoon, Evening And Night
• Can Enable/disable Ringtone At The Outdoor Station

Special Features (Micro SD Required)

• Automatic Recording For Motion Detection and Alarm Events
• Digital Photo Frame on Standby
• MP3 Player
• Away Voice Message (Voicemail System)
• Custom Ringtones

• 120° 2MP HD Camera
• Speaker and Microphone (Real Time Two-Way Communication via Smartphone(APP) and/or Indoor Monitor)
• Keypad (Secure Access with PIN Code)
• Call Button (Visitor calls can be received by the APP on your smartphone or tablet along with the indoor monitor simultaneously)
• Night Vision (The camera can capture high-quality images and video in low-light or completely dark environments With built-in IR LEDs)
• Motion Detection (Built-in motion detection allows the outdoor station camera to detect and capture motion within their field of view.)
• IC Tag Reader (Secure IC Tag Access Management)
• Weatherproof (IP65 Waterproof Durable Metal Case Outdoor Smart Intercom Camera)
• 4 Wire Video Keypad Outdoor Station

(IC Tags & Power Adapter Supplied)

A fourth-generation HD intercom system is an advanced communication system that utilizes high-definition video and audio communication technology. These systems can be used in residential, commercial, and industrial settings to enhance security, manage access control, and enable seamless communication with visitors on-premises. With This intercom system, you will get the latest advancements in intercom technology, including improved video quality, enhanced connectivity, and additional features such as mobile app integration and remote secure access management capabilities.

* Suitable with Eyevision® Intelli HD Series Indoor HD Monitor Options
   (EV-HD-WF8, V-HD-WF8-WH, V-HD-WF10)

* Click here to see Eyevision® Intelli HD Series Indoor HD Monitor Options and Packages

Outdoor Station Features

• Ultra-narrow 45mm Width Fits Onto any Post, Pier or Fence
• 2MP HD Camera (Full HD 1080P High Definition)
• 120° Lense (Ultra Vide Angle)
• 45° Wedge Bracket for best mounting direction
• Built-in Keypad with common PIN CODE system
• Built-in IC Tag/Card Reader
• Up to 100 Users when using IC Tags (allows for individual User ID's and PIN Codes)
• Lockout feature after too many incorrect PIN/IC tag uses
• Supports Exit Buttons
• Supports Fail Secure and Fail Safe Electric Strikers
• Supports Automatic Gate Release

45° Angle Wedge



The supplied 45° angle mounting wedge allows for the best alignment during the installation to point the outdoor station in the direction of the guest when the outdoor station is forward facing, and the guest may be standing to its left or right side.

The wedge is a universal mount allowing for both left-facing and right-facing setups.
