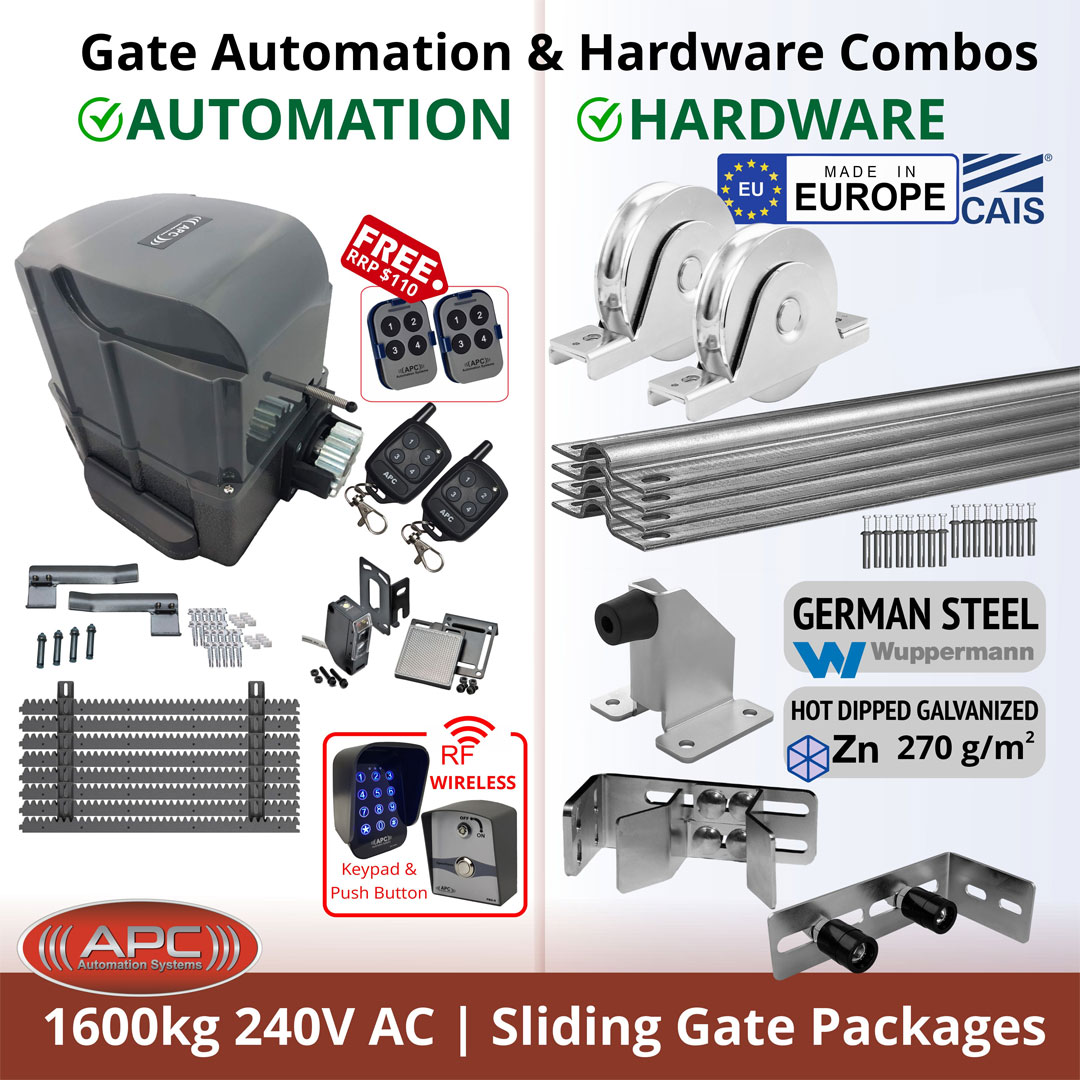

1600KG Extra Heavy Duty Sliding Gate Automation System and European Made Premium Sliding Gate Hardware. Complete Sliding Gate Opener with Hardware Kit.

S350GD Steel Hot Dipped Galvanised Sliding Gate Track

This 1m gate track is heavy-duty and 3mm thick. It is ideally suited to 20mm "U" gate wheels.

Material: (S350GD Steel) || High-strength, hot-dip galvanized steel (Sliding Gate Rail).

CAIS ROAD 1 | SLIDING GATE TRACK

Bolt down "U" Profile Ground Track Rail 1000mm long. Galvanised Finish

The CAIS ROAD Sliding Gate Track is made from hot-dip galvanised S350GD, high-strength structural steel. This sliding gate hardware is specifically developed for long-lasting use and is suitable for use in heavy-duty sliding driveway gate applications.

Hot-dip galvanizing ensures a homogeneous zinc coating on the surface, which protects the steel sliding gate tracks against corrosion in the long term on your sliding gate system.

This Sliding Gate Rail, S350GD Steel Track, has a (3569 kg/cm²) 350 N/mm² Newton per Square Millimetre Pressure strength in the upper strength classes of hot-dip galvanised steels. It is ideal for domestic and commercial large and heavy sliding gate systems.

What is S350GD Steel and Why is it Used in Sliding Gate Tracks?

S350GD steel is a high-strength structural steel grade featuring a hot-dip galvanised coating that enhances corrosion resistance and durability. It is specifically engineered for demanding outdoor environments, making it an ideal material for sliding gate tracks.

Due to the combination of structural strength and long-lasting protection against rust, S350GD ensures smooth, secure, and low-maintenance gate operation — delivering reliable performance over time in all weather conditions.

CAIS Recess Mount Sliding Gate Wheels

"U" GROOVED WHEEL SINGLE BEARING

CAIS WSO Single Bearing for Sliding Gates Wheels Road & Vector, Sliding Gates Wheels

CAIS rebate gate wheels are made from high-quality steel and bearings. Low-profile rebate wheels mean your gate is shallow to the ground. Best single-bearing gate wheels for gates and driveways...

Package:
CAIS WSO Single Bearing for Sliding Gates Wheels

Usage:
- Sliding Gates & Driveway Gates

Weight Capacity and Suitability:
- The wheels are suitable for sliding gate tracks with dome shape rise measuring 21mm in width (see the below dimensions and weight capacity)

Small Upper Rollers and Bracket Set for Cantilever Sliding Gates

High Qualy Two Roller Guide Plate

Cantilever Sliding Gate Upper Rollers Guide with Bracket

Cantilever Gate Hardware Upper Rollers and Bracket Set

CAIS ES 50 PN End Stop, Fixed, For Sliding and Swing Gates

Heavy-duty Galvanized Steel Gate Stop with Rubber Bumper

110mm High Bolt Down Gate Stop, CAIS ES 50 PN End Stop, Fixed, For Sliding and Swing Gates

The CAIS range of gate accessories is made from high-quality German steel and is heavily galvanised for longer life and rust resistance.

Usage:
- Swing Gates
- Sliding Gates

CAIS DOCKER O - Adjustable End Stop Bracket Set U Guide Gate Catcher for Sliding Gate (CAIS DOCKER 0)

CAIS DOCKER O

The upper ramp with bracket and adjustable width serves as the upper stop of the gate and, at the same time, prevents the gate from tilting to the side.

• CAIS DOCKER O - top riser with console

Technical details:

• For profile width: 0 - 120 mm
• Material: Steel
• Surface Treatment: Heavily Galvanize
• Dimensions:

Typhoon 1600 High Torque AC Sliding Gate Automation System

Strong & Durable

The Typhoon 1600 650W Internal motor allows for an 1600kg capacity making it the ideal candidate for the larger gate installations including incline/decline situations.

Ready to go the on board receiver will accept the entire range of current APC High Security wireless control systems and accessories such as wireless keypads, push buttons and an extensive range of  remotes. Perfect for a simpler of no wiring needed installation.

All In One Motor Design

Ultra-compact, sleek design and with some clever re-arrangement the APC Typhoon 1600 is one of the smallest physical footprint systems on the market with zero compromise in the motor or gearbox size. The bottom cast alloy section is powder coated in an ultra-durable hammer tone grey finish whilst the top cover sports a lighter gloss grey making it perfectly neutral and suited for any garden or driveway

With separate open and close inputs as well as a shared open/close input the APC Typhon 1600 will support just about any wired accessory and  can be connected for a specific direction or to operate both. Perfect for Keypads, Push buttons, Induction Loops or Smart Devices such as Wi-Fi switches or GSM controllers.

Pre wired with the AC power cable and fitted with an on board low voltage transformer means the accessories connections are low voltage (18V DC) and safe to connect.

Manual Override System

Rest easy knowing that even if the power is out the gate can still be operated by using the secure key override, once overridden the gate can be easily opened and closed by hand, once re-engaged the gate is locked in and 100% secure.

Metal Pinion & Cast Casing

Only the best parts are used to ensure an incredibly strong build quality from the robust cast alloy casing all the way to the one-piece solid steel pinion gear no corners have been cut.

Motor and Base Plate Dimensions Including Pinion Height

Suitability

• Sliding gate not exceeding 1600kg maximum (Telescopic Gates Supported up to 350KG PER gate)
• Sliding gate not exceeding 9m width maximum (Telescopic Gates Supported up to 4m PER gate)
• A power point is required at the gate (or can be hardwired by an electrician)
• Level ground installations or minor gradients

Specifications

FAQ

Remote Features

APC-RR-11 Retro Reflective Sensor

The retro-reflective Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

The sensor ( which is the transmitter and receiver) is wired back to the control box of the gate system using the pre-connected cable. There is no requirement for wiring across the driveway using this type of sensor.


• Up to 11 Metres Infrared beam operating distance


• Only powers on when the command is given to close the gates


• Alignment & Misalignment led to assist in the installation process


• Resin filled for the ultimate weatherproofing

APC-KP2W Wireless Keypad Features

• Low Power Consumption only 18uA in standby.


• Easy to replace AA battery-powered system (supplied) with up to two years usage on general use.


• High strength tempered glass faceplate with an ultra-modern and highly reliable touch-sensitive operation.


• Blue Backlight illumination upon touch with an automatic timeout to return to standby.


• Two dedicated LED indicators indicating and accepted pin code (green) and also security lockout (red)


• IP53 Weatherproof rated and suited for outdoor and indoor environments.


• Built in Anti Tamper alarm and security lockout to help prevent theft and unauthorized usage.


• Pin code scramble allowing the user to input a series of random number before the pin code to prevent pin code theft.


• Two-Channel operation allowing the user to control two different items or functions using separate pin codes.




Channel 1 supports up to 8 Pin Numbers (Full Gate Feature)



Channel 2 supports up to 3 Pin Numbers (Pedestrian Gate Feature)

Wireless Double Push Button with Isolation Key

The wireless double push button switch is a simple and easy to use method to operate the gate for full gate operation and also pedestrian function.

It is mounted in the general area of the gate and can be isolated by using the supplied keys without affecting the rest of the system, this is handy if you want to continue using the remotes or any other method of operation but wish to stop use of the push button itself.

The wireless push button communicates with the control board using the same rolling code 433mhz frequency as the remote thus eliminating the need for any extra add ons. If required the wireless push button can be upgraded to a wireless keypad for higher access security using pin number and can have diffrent pin codes for both the full gate operation and pedestrian function.

(2 x 50 CM) Nylon Gear Racks 1 Meter Pack | Made in Italy by Stagnoli

Interlocking Gear Racks Made in Italy by Stagnoli

The Keyed Interlocking Modular Nylon Gear Rack is Compatible with All Sliding Gate Automation

Stagnoli, Italy invented the nylon racks and has been manufacturing nylon racks since 1981. The advantage of nylon racks is no lubrication, rust-free and silent. Furthermore, with the nylon rack, there is no need to carry out any welding, which is instead required for iron racks and which involves more machining in the assembly process. GR50 is a quality product and is completely Made in Italy.

Dimensions of Modular Nylon Gear Racks | Sliding Gate Hardware

This gear rack nylon coated with steel core, strong and quiet, is compatible with all sliding gate automation, and is easy DIY install.

Modular gear racks kit includes;

A box with 2 nylon gear racks measuring 50 cm, 4 self-tapping and self-piercing screws, and 4 washers in galvanized steel. (Made in Italy by Stagnoli)
